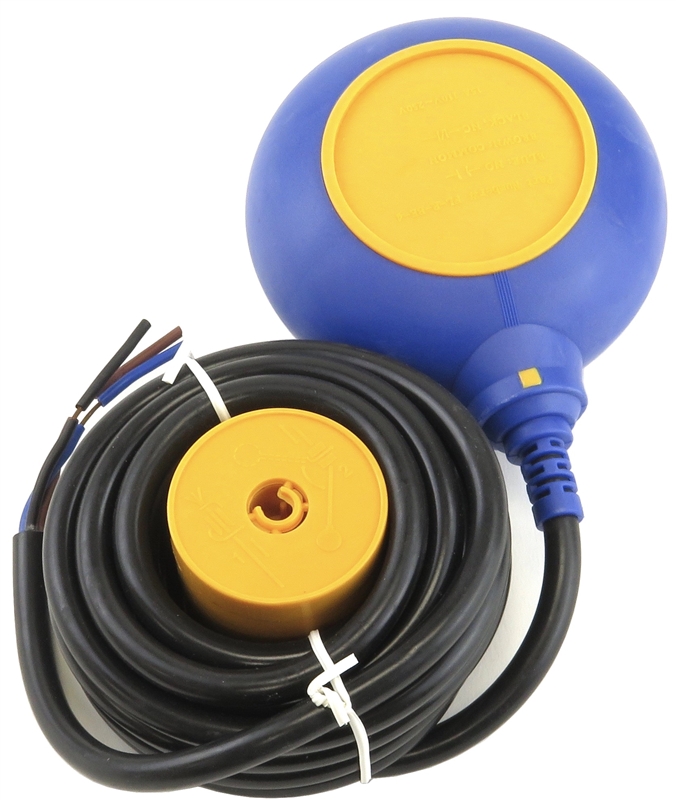

FL-R-BE-4 FLOAT SWITCH R
FL-R-BE-4 FLOAT SWITCH R
(Actual product appearance may differ from product shown)




Our Price: $19.99



Availability: Usually Ships in 24 to 48 Hours

Description


FLOAT SWITCH ROUND BLUE 1NO, 1NC 4-METERS 250V 10A #14-GAUGE-WIRE. WETTED SURFACES: Body - polypropylene, Cable - PVC or Neoprene available. MICROSWITCH SPECS: Contact rating: 15 amps@ 125/250 VAC 50/60 Hz Contacts: solid silver Electrical Life@ maximum load: 100,000 operations Mechanical Life: 10,000,000 operations Insulation Resistance: 100 Mohm 10amp 250v Contact 1no/1nc OPERATING SPECIFICATIONS: Minimum fluid specific gravity: 0.72 Maximum pressure: 75 psi Operating temperature range: 32 to 122 deg F (0 to 50 deg C) Storage temperature range: -4 to 176 deg F (-20 to 80 deg C) Electromechanical level regulator The level regulator is a float switch which allows electrical equipment to start and stop automatically (usually pumps, but also electric control valves, alarms, etc.) when a prefixed level has been reached. The most essential characteristic of this product is its high reliability and its shape which has no edges, for which it is particularly suitable for sewage water. Also of great interest is the fact that it is made with a double liquid proof chamber which assures the maximum reliability of the inside mechanism. The minimum working distance between the level regulator and the fixing point is 20 cm.

Share your knowledge of this product with other customers... Be the first to write a review
